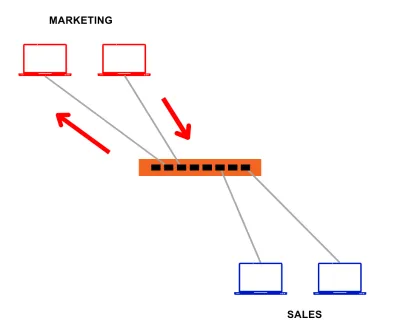

Suppose we have two departments in an organization- Sales and Marketing, connected as shown in the figure.

The sales PC wants to broadcast a message for its department while the message has nothing to do with the marketing department, but what should the switch do in such circumstances?

Yes, it broadcasts that message to each PC connected to it; hence, the marketing PC will also be reading that particular message.

Does it sound good?

Apart from unnecessary network congestion occurring due to broadcast, there is a layer two attacks risk.

One of the solutions is to buy different switches for each department and connect them accordingly.

But, with this approach, three problems arise-

• Cost of the infrastructure increases.

• A lot of switch ports might remain vacant.

• What if one department wants to communicate with another department? We need to broadcast that message individually for each department.

VLAN is the concept that can help to eliminate all these problems.

What is VLAN?

VLAN is a logical grouping of network devices connected to a switch. By creating VLAN, we create smaller broadcast domains at layer-2 by assigning different ports to different subnetworks on one switch.

In simple words, we are creating a small LAN inside a LAN.

With the help of VLAN, frames broadcasted get switched between ports and groups within the same VLAN.

So now, let us assign VLAN 10 to Sales and VLAN 20 to Marketing, as shown in the figure.

Now if the Sales PC sends out the broadcast packet, it will also reach another Sales PC or the PCs assigned with VLAN 10.

Similar is the case with Marketing PCs. Whenever a Marketing PC broadcasts a message, it will reach the PCs with VLAN 20.

VLAN ranges from 0-4095

• VLAN 0 and 4095 are reserved for system use only.

• 01 is the default VLAN. Initially, each port is in VLAN 1

• 2-1001 are Ethernet VLANs and can be assigned and deleted

• 1002-1005 are Cisco defaults used for FDDI and Token Ring. It cannot get deleted.

•  1006-4094 are called extended VLANs.

Let us understand the basic VLAN configuration:

Initially, ports and VLAN of a switch look like this-

 Switch> en

Switch# show vlan

 VLAN Name Status Ports

—- ——————————– ——— ——————————-

1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4

Fa0/5, Fa0/6, Fa0/7, Fa0/8

Fa0/9, Fa0/10, Fa0/11, Fa0/12

Fa0/13, Fa0/14, Fa0/15, Fa0/16

Fa0/17, Fa0/18, Fa0/19, Fa0/20

Fa0/21, Fa0/22, Fa0/23, Fa0/24

Gig0/1, Gig0/2

1002 fddi-default active

1003 token-ring-default active

1004 fddinet-default active

1005 trnet-default active

Configuration

Switch(config)#vlan 10

Switch(config-vlan) #name sales

Switch(config)#interface fa0/1

Switch(config-if) #switchport access vlan 10

Switch(config-if) #interface fa0/2

Switch(config-if) #switchport access vlan 10

Switch(config)#interface fa0/1

Switch(config-if) #switchport access vlan 10

Switch(config-if) #interface fa0/2

Switch(config-if) #switchport access vlan 10

 Switch#show vlan

 VLAN Name Status Ports

—- ——————————– ——— ——————————-

1 default active Fa0/5, Fa0/6, Fa0/7, Fa0/8

Fa0/9, Fa0/10, Fa0/11, Fa0/12

Fa0/13, Fa0/14, Fa0/15, Fa0/16

Fa0/17, Fa0/18, Fa0/19, Fa0/20

Fa0/21, Fa0/22, Fa0/23, Fa0/24

Gig0/1, Gig0/2

 10 sales active Fa0/1, Fa0/2

20 marketing active Fa0/3, Fa0/4

 1002 fddi-default active

1003 token-ring-default active

1004 fddinet-default active

1005 trnet-default active

 Port Fa0/1 and Fa0/2 are part of VLAN named Sales.

Port Fa0/1 and Fa0/2 are part of VLAN named Marketing.

What is a Trunk Port?

In our previous example, all PCs of the different departments get connected to the same switch, but what if we have more than one switch connecting PCs of diverse departments? Also, the PCs of the same department get connected to different switches.

Let’s say two Sales and three Marketing employees are on floor number 1 while four employees of Sales and two of Marketing are sitting on floor number 2.

Sales VLAN: – 10

Marketing VLAN: – 20

The switch on floors 1 and 2 are connected using a link.

Therefore, we have learned that each port gets configured as VLAN 1. But now, can the Sales PC on floor 1 communicate with Sales PC on floor 2?

Of course not, because the link connecting both switches gets configured as VLAN 1.

One option is to configure it on VLAN 10 so that the Sales PC can communicate, but, in this case, Marketing PC will not be able to communicate further; and vice versa is also possible.

To overcome this problem, we use Trunk Ports.

Access Port: – Port which carries the traffic of only 1 VLAN. Traffic is sent and received on a trunk port without any tagging, and if there is traffic while tagging (IEEE 802.1Q tagged), it will just drop the packet.

Trunk Port: – The port which allows traffic of different VLANs to pass through it.

Switch 1

Switch>en

Switch#config t

Switch(config)#vlan 10

Switch(config-vlan)#name SALES

Switch(config-vlan)#vlan 20

Switch(config-vlan)#name MARKETING

Switch(config-vlan)#interface range fa0/2-3

Switch(config-if-range)#switchport access vlan 10

Switch(config-if-range)#interface range fa0/4-6

Switch(config-if-range)#switchport access vlan 20

Switch(config-if-range)#exit

Switch# Show VLAN

VLAN Name Status Ports

—- ——————————– ——— ———————-

1 default active Fa0/1, Fa0/7, Fa0/8, Fa0/9

 Fa0/10, Fa0/11, Fa0/12, Fa0/13

Fa0/14, Fa0/15, Fa0/16, Fa0/17

Fa0/18, Fa0/19, Fa0/20, Fa0/21

Fa0/22, Fa0/23, Fa0/24, Gig0/1

Gig0/2

10 SALES active Fa0/2, Fa0/3

20 MARKETING active Fa0/4, Fa0/5, Fa0/6

1002 fddi– default active

1003 token-ring- default active

1004 fddinet– default active

1005 trnet– default active

Switch 2

Switch#config t

Switch(config)#vlan 10

Switch(config-vlan)#name SALES

Switch(config-vlan)#vlan 20

Switch(config-vlan)#name MARKETING

Switch(config)#interface range fa0/2-5

Switch(config-if-range) #switchport access vlan 10

Switch(config-if-range)#interface range fa0/6-7

Switch(config-if-range)#switchport access vlan 20

Switch#show vlan

VLAN Name Status Ports

—- ——————————– ——— ——————————-

1 default active Fa0/1, Fa0/8, Fa0/9, Fa0/10

Fa0/11, Fa0/12, Fa0/13, Fa0/14

Fa0/15, Fa0/16, Fa0/17, Fa0/18

Fa0/19, Fa0/20, Fa0/21, Fa0/22

Fa0/23, Fa0/24, Gig0/1, Gig0/2

10 SALES active Fa0/2, Fa0/3, Fa0/4, Fa0/5

20 MARKETING active Fa0/6, Fa0/7

1002 fddi– default active

1003 token-ring- default active

1004 fddinet– default active

1005 trnet– default active

Trunk:

Switch 1

Switch(config)#interface fa0/1

Switch(config-if)#switchport mode trunk

Switch(config)#interface fa0/1

Switch(config-if)#switchport mode trunk

NOTE: – Older switches support both .1q and ISL encapsulation, but the new switch model only supports .1Q encapsulation.

In the case of an older switch, an extra command (Switch(config-if)# switchport trunk encapsulation dot1q) is mandatory to define the encapsulation type.

Switch 2

Switch(config)#interface fa0/1

Switch(config-if)#switchport mode trunk

Switch(config)#interface fa0/1

Switch(config-if)#switchport mode trunk

Now if PC 1 wants to communicate with PC 2, it will send a message. The message gets received on Switch-1 and transmitted with the link connected on Fa0/1 to Switch-2 since we configured Port Fa0/1 as a trunk port on both switches. Hence it can pass traffic of all VLANs.

Similarly, If Marketing PC wants to communicate with Marketing PC on the 2nd floor, the switch can transmit the frame with the link connected to Fa0/1 to Switch 2. In this way, the trunk port can help ship frames of different VLANs using a single port.

Another question that strikes me is how the port at the trunk port and other ports knows which frame is of which VLAN.

Switch knows about the type of VLAN using encapsulation.

What is encapsulation and its types?

When the switch port gets configured as Trunk Port, it adds a unique ID to frames to identify their VLAN, known as encapsulation.

There are two types of encapsulations-

• IEEE802.1Q

• Inter-Switch Link (ISL)

Difference between IEEE802.1Q and Inter-Switch Link (ISL)-

802.1Q is a standard and multivendor protocol, while ISL is Cisco proprietary. Also, ISL does not get supported by other switches.

ISL adds a 30-byte size of the tag to identify the VLAN, while 802.1Q adds only 4 bytes to perform a similar function.

Conclusion!

We have understood a fatal problem faced in an organization having different departments and the solution to it. VLAN helps to group devices of diverse departments which helps to reduce the cost of the infrastructure and makes network management easy.

If a different department wants to communicate with the other, then it can be achieved by using a router, and this concept is known as Inter-VLAN Routing.
